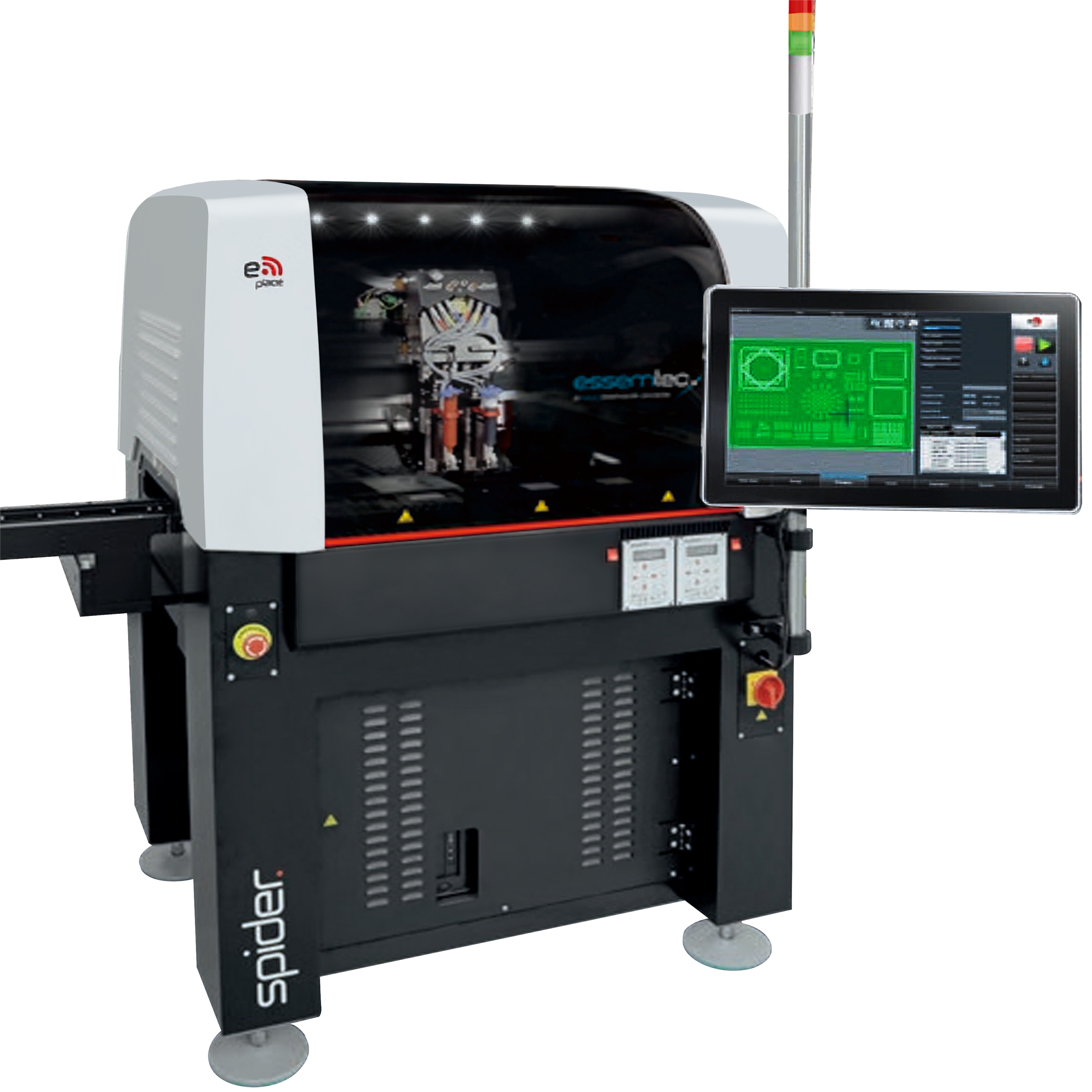

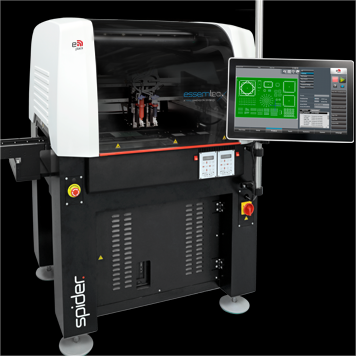

The Spider offers state-of-the-art technology that can be easily integrated into any production line. It has a wide range of dispensing applications, including Solder Paste and SMT Glue, LED Encapsulation, Silver Epoxy, Dam and Fill, Underfill, Cavity Fill, 3D Dispensing via laser height mapping, and more.
| Process | Maximum dispensing speed | Piezo Jet Valve: > 720’000 dots/h |
| Dynamic Shockwave Valve: 720‘000 Dots/h |
| Archimedean Screw Valve: 24‘000 Dots/h |
| Dispensing mode | Dot, line, curve, interpolated 3D contour |
| Accuracy | Placement XY dots | 40 μm (3σ) |
| Positioning Z axis | 20 μm (3σ) |
| PCB | PCB dimensions | 50 x 50 mm bis zu 406 x 305 mm (2 x 2” up to 16 x 12”) |
| Dimensions | Machine footprint | 880 x 1090 mm (34.7 x 43”) |
