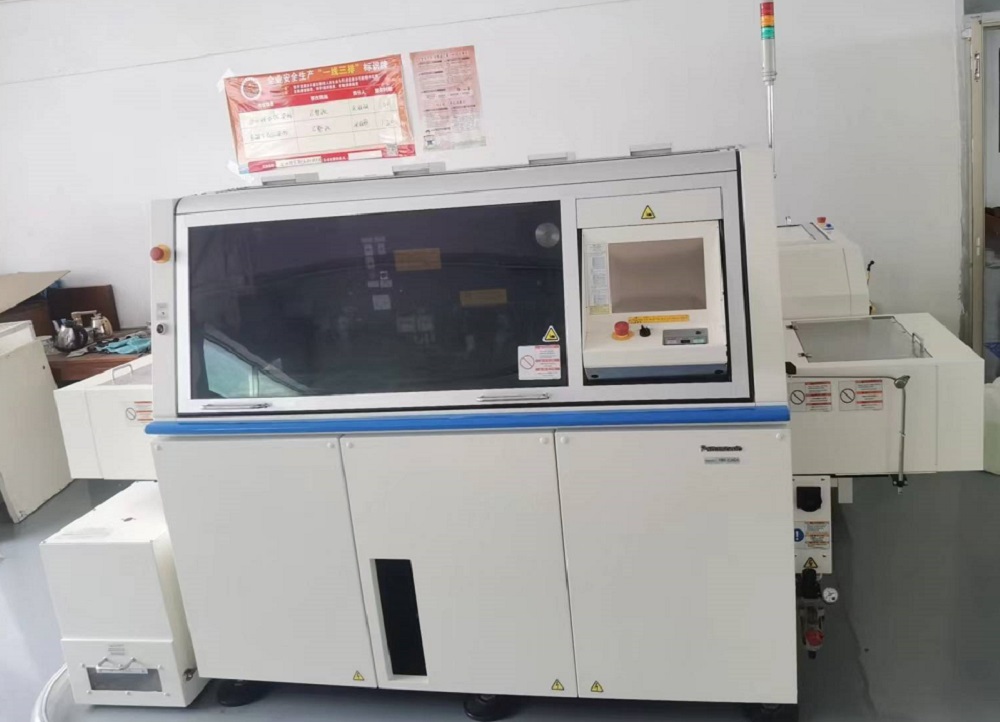

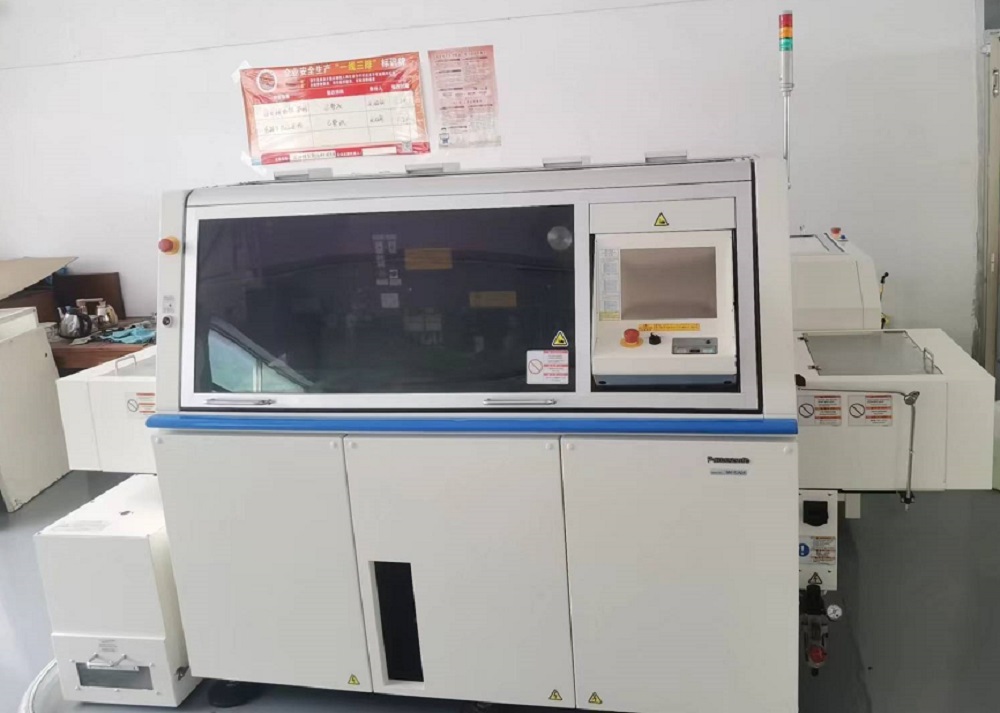

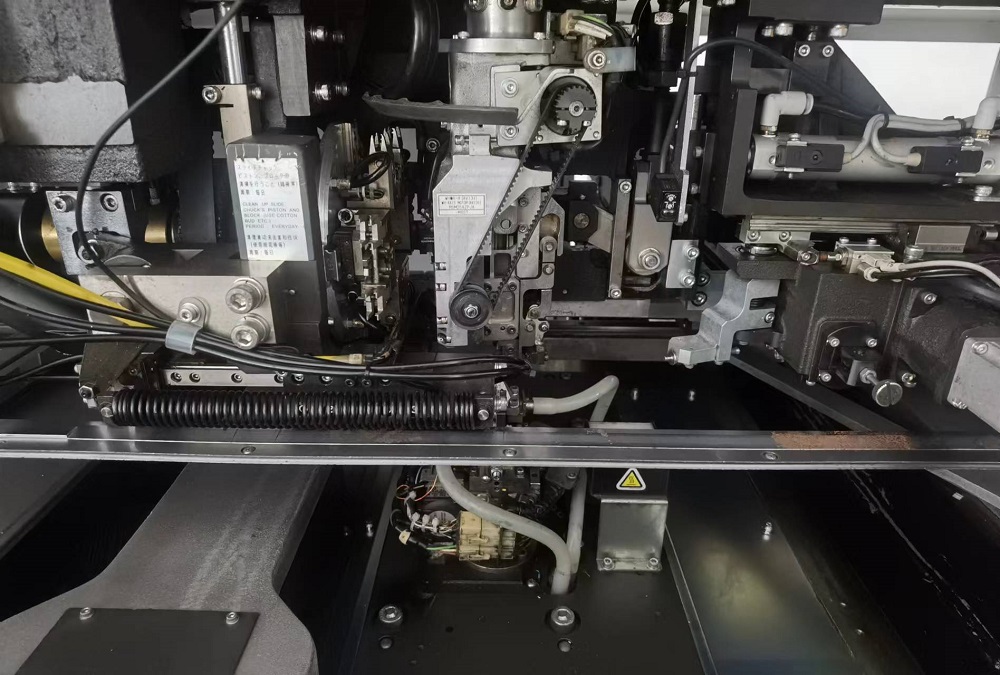

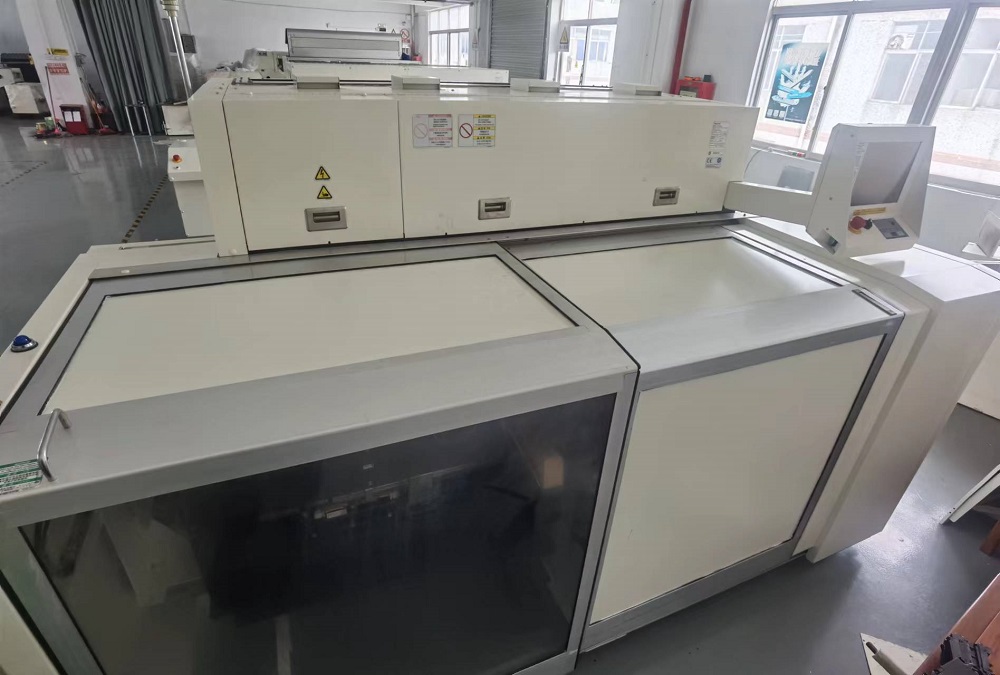

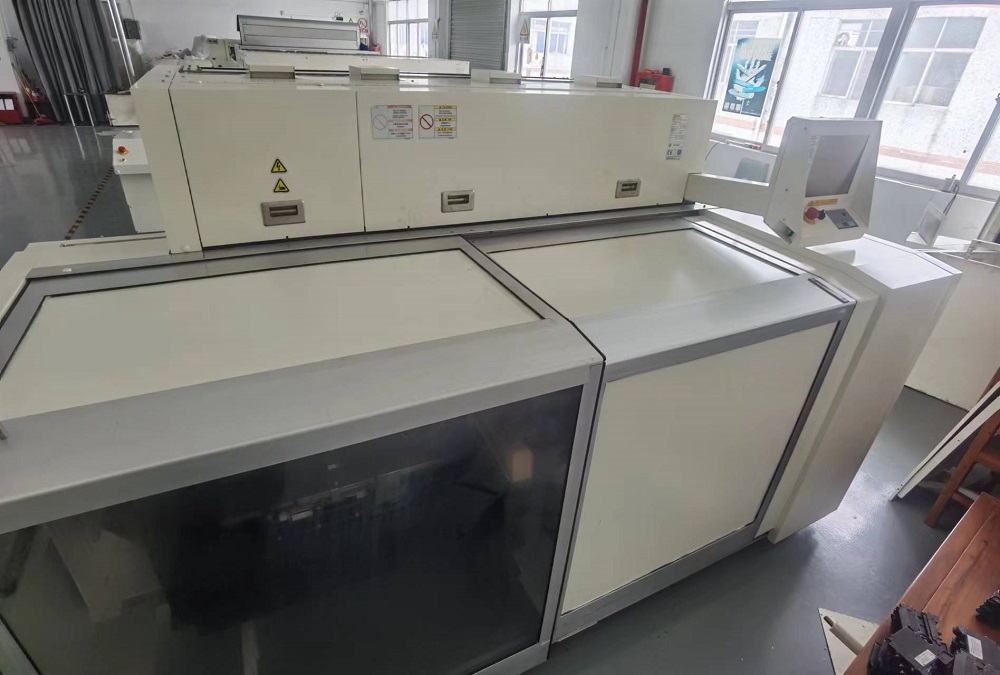

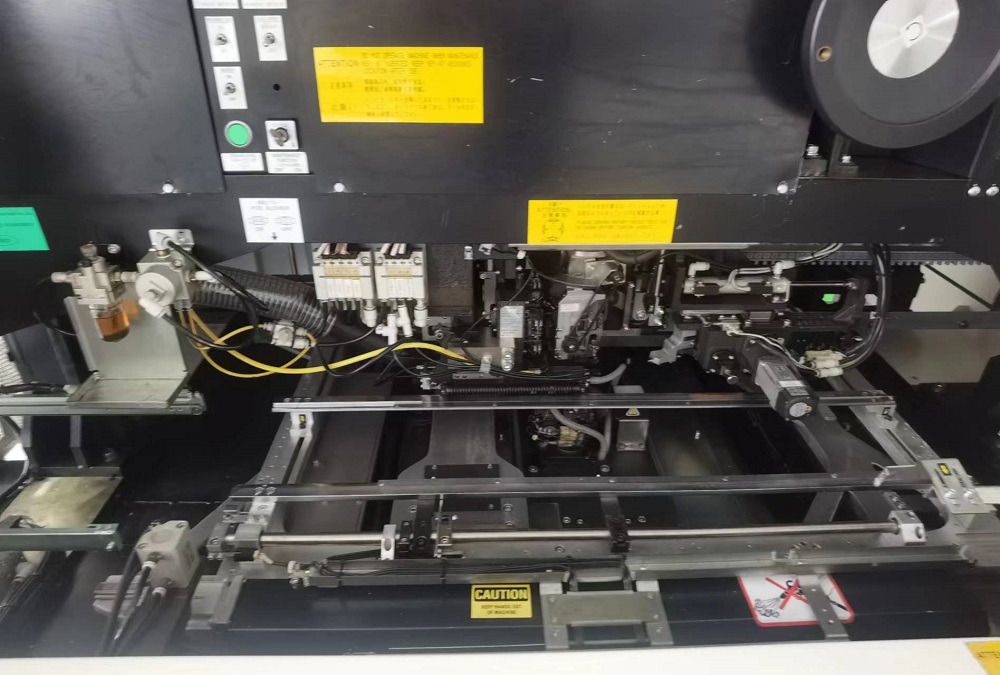

Panasonic HDF NM-DC10/ DC15 Adhesive Dispenser machine
Item Specifications
Electric Source
| Rated voltage | 3 phase AC 200 V ±10 V |
| Frequency | 50/60 Hz |
| Rated capacity | 4.5 kVA Main unit: 2.0 kVA |
| Ambient temperature controller (Option) | 2.5 kVA |
| The main machine has power supply for optional units. | |
Pneumatic Source
Supply air pressure: 0.5 MPa
Air consumption: 40 L/min (A. N. R.)
Note:
Please install moisture and oil separators on the compressor to ensure the supply of cleaned, dried and
Compressed air
Compressed air.
Air Inlet: PT 3/8
Main unit: One-touch coupler (male) (Nitto Kohki 30PM)
Accessory hose (5 m) tip: One-touch coupler (male) (Nitto Kohki 30PF)
Dimensions
NM-DC10: W 1 590 mm × D 770 mm × H 1 500 mm (Not including signal tower and monitor)
NM-DC15: W 1 930 mm × D 1 082 mm × H 1 500 mm (Not including signal tower and monitor)
Mass
Machine Mass: NM-DC10: 900 ㎏ NM-DC15: 1 245 ㎏
Environment
Ambient Temperature: 10°C to 30°C
Operation Unit
Human-machine communication control
Color LCD (Japanese or English)
Data input/output: Manual input using keyboard
3.5 inch floppy disk drive as standard (Format 1.2 MB or 1.44 MB)
Program input/output, production management information output, monitoring function and remote control via RS-232C
Paint Color
Standard color: White W-13 (G50)
| Control System | |
| Panadac 783AK microcomputer | |
| AC servomotor semi-closed loop | |
| Command System | |
| XY axis | Absolute |
| Minimum Positioning | |
| Increment | |
| XY Movement Increments | 0.01 mm/pulse |
| Program | |
| No. of NC Program Blocks | 5 000 blocks/32 programs (Max. 2 000 blocks/program) |
| Option | 15 000 blocks/32 programs (Max. 5 000 blocks/program) |
| No. of Array Program Blocks | 300 blocks × 8 programs (Option: 300 blocks × 32 programs) |
| No. of Component Libraries | 1 000 components |
| No. of Mark Libraries | 200 marks |
| No. of Trial Dispensing Programs | 8 programs (Option: Max. 32 programs) |
| No. of PCB Programs | 8 programs (Option: Max. 32 programs) |
| Others | |
| Program Functions See “6. Standard Functions” for recognition method. | |
| Pana PRO J/CAM This software is for line optimization and data division for multiple-machine connected line. | |
| Data creation Pana PROJ/CAM and this machine are required. | |
| Production Control Information Display | |
| Display the machine operation and control information.HDF 2008.1215 -4 -3.2 Standard Functions | |
Item Specifications
| Dispensing Tact | Screw type: 0.07 s/shot |
| Condition | |
| Dispensing time | 5 ms to 25 ms |
| XY movement | within 3 mm |
| Nozzle stroke without theta rotation | 3 mm |
| Up/down speed setting | 1 |
| Dispensing Time (Standard Dispensing Amount × Multiplier) | |
| Standard dispensing amount | 0 ms to 999 ms (1 ms increments) |
| Multiplier | 0.1 to 99.9 (0.1 increments) |
| The longest dispensing time (Standard dispensing amount × magnification) is, however, 480 ms | |
| Dispensing Position | |
| Repeatability | ±0.1 mm |
| Applicable | |
| Components | 1608 to QFP |
| PCB Replacement | |
| Time | |
| NM-DC10 | Approx. 2.4 s |
| NM-DC15 | Approx. 2.9 s |
| Conditions | Right to left with reference to the left Left to right with reference to the right |
| XY table speed | 1 |
| It takes longer under any other conditions. | |
Applicable PCB
Dimensions
Min. L 50 mm × W 50 mm to Max. L 330 mm × W 250 mm (NM-DC10); Min. L 50 mm × W 50 mm to Max. L 510 mm × W 460 mm (NM-DC15)
Dispensing area (It varies depending on nozzle.)
Min. L 50 mm × W 42 mm to Max. L 330 mm × W 242 mm (NM-DC10); Min. L 50 mm × W 42 mm to Max. L 510 mm × W 452 mm (NM-DC15)
Thickness: 0.5 mm to 4.0 mm (No adjustment required the PCB pinch system)
Mass: 1 ㎏ (NM-DC10), 3 ㎏ (NM-DC15)
PCB Positioning
Positioning with PCB recognition marks
PCBs without recognition marks require optional pin positioning.
* Please contact us for ceramic and other PCBs that do not have either PCB recognition marks or reference holes.
Direction of PCB Flow
Right to left or left to right (Selectable specification)
Front reference or rear reference (Selectable specification)
(Rear reference is not conformable to CE and there are restrictions.)
Manual width adjustment or automatic width adjustment (option)
Automatic rail width adjustment (operated through the control panel) and dispensing on rail prevention function are a pair of options.
